Introduction

Text Adventure is a text-based RPG set in a fantasy world. You will be the hero of our story, are you ready for this exciting adventure?

Game Plot

In a distant era, in the lands of Margorgh, in the darkest depths of a shadowy forest, it is said that there exists a Castle ruled by the forces of evil, housing an unimaginable power. For countless millennia, humanity has sought to wrest this power from the forces of evil; battles and wars have marked the quest for this power.
Over time, the traces of the Castle and the power within have been lost, vanished like leaves on trees in winter, or at least, so it was believed... A mysterious scroll was discovered by a warrior with a golden heart, a scroll containing knowledge that he could not have imagined and that would lead him to an unbelievable destiny....

User stories

To consult the project's user stories, check here ↗

Javadoc

To consult the project's javadoc, check here ↗

Manual

Gameplay

The game is set in two different levels, located respectively in a forest and in a castle.
It is subdivided into various sections (that we will call "rooms" from now on) with at first only one is available to access.
In these rooms, you will find contexts in which you have to defeat a monster, pick items and search for keys in order to "unlock" them.

The program presents as first thing the main menu, where you can choose between:

• starting a new game
• loading a pre-existing game (if existing)
• deleting a pre-existing game (if existing)
• seeing a list of the pre-saved games

At any moment of the game you can:

• use the command help to request the list of the available commands.
• use the command save to save your current progress in locale on your computer.
  Warning! The game will not automatically save the progress!
  If you want to save on cloud you must set up your own bucket environment!

The main goal of the game is to complete all the rooms, reach the castle and beat the final boss!

Graphic Interface

For the GUI it has been used JavaFX FXML, with which you can implement the graphics of a desktop application.
The graphic interface is composed in three main parts:

• an "artistic" section, where there is an image/video (created and rendered with the program Blender) which represents the content of that specific room
• an output section, where you can see the program's response
• an input section, with which you can interact with the game

How To Play

The user interact with the display using a custom command line, which is located at the bottom of the game window.
The user have to type the command followed by (if any) arguments and then press Enter to trigger the specific in-game action.
Example:


						>> command <argument>



The complete list of all the possible commands with a precise illustration of the arguments and the description is available here ↗.

Word completion feature

It has been implemented a personalized word-completion feature which, alongside with the command help, it has the purpose of improving the end user experience. Here are two main scenarios:

• You haven't started typing your command or argument yet.
  Tab ↹/Shift+Tab will visualize the list of all the possible option at that moment.

• You have already started typing the first letters of your command or argument.
  Tab ↹/Shift+Tab will visualize the list of the options based on what you already typed.

In both cases, keep pressing on the combinations until you find the command or the argument needed.
Then, press Enter or Space (if you need arguments) to select it.

Commands List

Warning! Keep in mind that the arguments indicated are mandatory. Not following this can create some discomforts during the gameplay, such as the appearing of error messages.

Game map

We recommend discovering the map by playing, but if you really want to see how the default map is implemented, check the following image!

How To Install

Maven (option 1)

1. Clone the repository

   If not installed, install git using this guide ↗.
   Once installed, from the terminal move to the folder where you want the repository to be cloned and run:



                  					git clone https://github.com/alessiochecchin/text_adventure.git



   Copy

2. Install Maven

   Maven version 3.9.7 doesn't work with this project.
   Maven versions 3.9.6, 3.8.8, 4.0.0 have been tested.
   If not already installed, follow this guide ↗ to install Maven.
   A useful guide to install and set environment variables on Windows ↗, on Ubuntu ↗, on Mac ↗


3. Install JDK20

   Check if in the system is already installed JDK20 by running on the terminal:


   								java --version



   Copy

   If JDK20 is not installed use this page ↗ to download the right package or installer.
   For any issue, follow this guide ↗.

4. AWS Setup (optional)

   Check here ↗.

5. Build the project

   On the terminal, move to the folder text_adventure (the repository previously cloned) and run:



   								mvn package



   Copy

6. Run the project

   On the same directory run:


   								mvn javafx:run



   Copy

IntelliJ IDEA (option 2)

1. Clone the repository

   If not installed, install git using this guide ↗.
   Once installed, in the terminal move to the folder where you want the repository to be cloned and run:



   								git clone https://github.com/alessiochecchin/text_adventure.git



   Copy

2. Install Intellij

   First, install JetBrains Toolbox App from this link ↗.
   Once Toolbox is installed, run it and install Intellij Community (or Intellij Ultimate if holder of a valid license).

3. Install JDK20

   Check if in the system is already installed JDK20 by running on the terminal:


   								java --version



   Copy

   If JDK20 is not installed use this page ↗ to download the right package or installer.
   For any issue, follow this guide ↗.

4. Open the repository

   Launch Intellij IDEA and click on Open... and select the repository previously cloned.
   If somewhere in the interface appears the error message JDK "20" is missing, click on Configure...
   It should automatically detect the presence of the JDK20 previously installed and it should appear on the top of the dropdown menu.
   If that's not the case, click on Add JDK... and select JDK20 folder previously installed.

5. Update Maven dependencies

   Select the file text_adventure > pom.xml and right click on it.
   Then click con Maven > Reload Project in the dropdown menu that appears.

6. AWS Setup (optional)

   Check here ↗

7. Run the project

   Open the file text_adventure > src > main > java > com > adventure > Main and then click on the left green arrow
   near the row with written



   								public static void main(String[] args) { launch(); }



   Copy

   Note:

   if after running the project appears and error with written "Command line too long"
   just click on "Shorten the command line and return"


Jar (option 3)

1. Download

   From the "Releases" section, download the correct Jar version based on your operating system and place it somewhere.
   Available versions include

   • Windows
   • Linux Aarch64
   • Linux (non-Aarch64)
   • Mac Aarch64

2. Setup

   To create the setup, run the following command in the folder where the file is located:


   								java -jar adventure.jar -s



   Copy

   or


   								java -jar adventure.jar --setup



   Copy

   The command will create the necessary folders to play the game.
   By default, the game works locally and saves all files in the folder text_adventure > saves.
   It is possible to play by saving to the cloud using personal AWS credentials.
   For this, you need to open the file in text_adventure > key.conf
   For more information follow AWS setup ↗.

3. Run

   To start the game, simply run the command:



   								java -jar adventure.jar



   Copy

   or double-click on the application icon.

Mac-only bundle version (option 4)

For Mac users, a bundle version Test_adventure.app has been produced for more compact management.

Simply download the Test_adventure.app and then double-click to run it.
To set the credentials, you need to right-click on the app > Show Package Contents
In the Finder window that opens, go to text_adventure > key.conf and enter the credentials.

Optional Setups

AWS Setup

1. Create a S3 Bucket called edidstextgame. (we used this name for demonstration purposes, you may need to choose another one, just replace our name with the one that you prefer).
2. From AWS console move to IAM section (Identity and Access Management).

3. Create a new policy using this json configuration file:


   								{
   									"Version": "2012-10-17",
   									"Statement": [
   										{
   											"Sid": "ListObjectsInBucket",
   											"Effect": "Allow",
   											"Action": ["s3:ListBucket"],
   											"Resource": ["arn:aws:s3:::edidstextgame"]
   										},
   										{
   											"Sid": "AllObjectActions",
   											"Effect": "Allow",
   											"Action": "s3:*Object",
   											"Resource": ["arn:aws:s3:::edidstextgame/*"]
   										}
   									]
   								}



   Copy

   This configuration allows the game to work with the minimal necessary privileges.

4. Create a new user group and assign to it the new created policy.
5. Create a new user and assign the user to the created group.
6. After creating the user, generate a client-secret pair credentials.

7. In the file text_adventure > key.conf complete the fields:



   								storage.aws.key=
   								storage.aws.secret=
   								storage.aws.bucket.name=
   								storage.aws.region=
   						 Copy


8. Remember to never share you client and secret keys!

Dependencies

Design

Software Design

The project was conceived and structured with the goal of achieving a modular and testable structure with reusable functionalities. To reach this objective, various known patterns were utilized, with proper modifications.

Decision Graph as Decision Support

One of the primary goals we developers set was to create a system that ensured easy updating and modifications of the map while allowing the addition of game features without significantly impacting the existing code.

The solution we proposed uses a decision graph (hereafter referred to as the game graph) that organizes the game and its state.

Within the graph, we identify three fundamental components that underpin the game's operation:

1. StoryNode (graph nodes): These identify a game node, such as a room to visit, an enemy to fight, or even a specific state (like the game just loaded or the victory state).
2. StoryNodeLink (graph edges): These represent the possible connections the player can use to move from one graph node to another.
3. Action: These are the actions or logical states that enable the activation of a graph edge, allowing traversal from one node to another. This means that edges can be present but only be unlocked upon reaching a certain condition or game state.

It is possible to modify the map by adding new nodes and edges without recompiling the project. This allows anyone to generate their own maps, with items and enemies as desired, without needing to recompile the project.

If specific functionality nodes need to be added, simple implementation of the node, its graphics, and its controller suffices.

Architectural Patterns

1. MVC Pattern

   JavaFX was used for managing the graphical part and direct interaction with the user, which natively offers integration with the MVC pattern. The game loads the graph node, which contains:

   • A reference to the graphical screen to be displayed to the user (view).
   • All the models related to that node. Specifically, the screen (view) has reference to a controller.

2. Pipe-Filter Pattern

   This pattern was used for handling input/output flows of commands. When a command is typed and recognized among the registered commands, the console input is redirected to a stream, which is then passed to the command via dependency injection. This allows the command to interact directly with the user as if it were executing in a standalone program.

3. Reflection

   We used reflection for command management and implementing auto-completion. To register a new command in the CommandParser, simply pass the command's class, and the command parser will generate the correct instance when required. Reflection is also used to obtain auto-completion parameters, which are returned by an optional method of the command.

GRASP Principles

During the project's development, as mentioned above, we aimed to follow the nine GRASP principles to achieve a result that met testability and modularity requirements. Specifically, we utilized:

1. Creator

   Two examples are Config and StorageProvider, but others can be found within the application. Configuration parameters for the entire application are stored in Config within ApplicationContextProvider, which loads them from a configuration file. Similarly, Config manages the instantiation of StorageProvider, which interfaces with the storage mechanism.

2. Controller

   As mentioned earlier, JavaFX natively provides an MVC architecture. Controllers, as usual, link the user with the models and the application's logic.

3. Low Coupling

   Low coupling was one of the fundamental goals of the project. To achieve a satisfactory result, we used well-known and established patterns, and the objects necessary for configuration were passed via dependency injection to improve separation of concerns and achieve loosely coupled classes.

4. Information Expert

   The expert pattern is used, for example, in command management. CommandParser creates and manages the available commands since it contains all the necessary metadata (descriptions, object classes, etc.) to do so.

5. High Cohesion

   All developed classes were designed with the goal of having specific roles and a limited set of responsibilities.

6. Pure Fabrication

   Classes such as CommandParser and ApplicationContextProvider use pure fabrication.

7. Polymorphism

   The project extensively uses polymorphism, with examples including Command and StorageService.

8. Protected Variation

   During the project's development, we paid particular attention to implementing the application in a way that minimizes errors when modifying elements. We followed traditional design patterns and extensively used interfaces to achieve this.

9. Indirection

   The project uses indirection to aim for low coupling, employing dependency injection, the MVC pattern, and more.

GoF (Gang of Four)

1. Singleton

   We used the singleton pattern to implement:

   • ApplicationContextProvider
   • IdManager
   • CommandParser
   • AutoCompleter

2. Factory Method

   Loading/creating a Game is managed by the newGame and loadGame methods within StorageService, which can have different implementations depending on the chosen configuration.

3. Command Pattern

   Command management is implemented using this pattern.

Domain Model

System Sequence Diagram

Internal Sequence Diagrams

Command usage and creation

Autocompleter

Command move

Command attack

Command dodge

Command equip

Command fight

Command run

Command use

Design class model

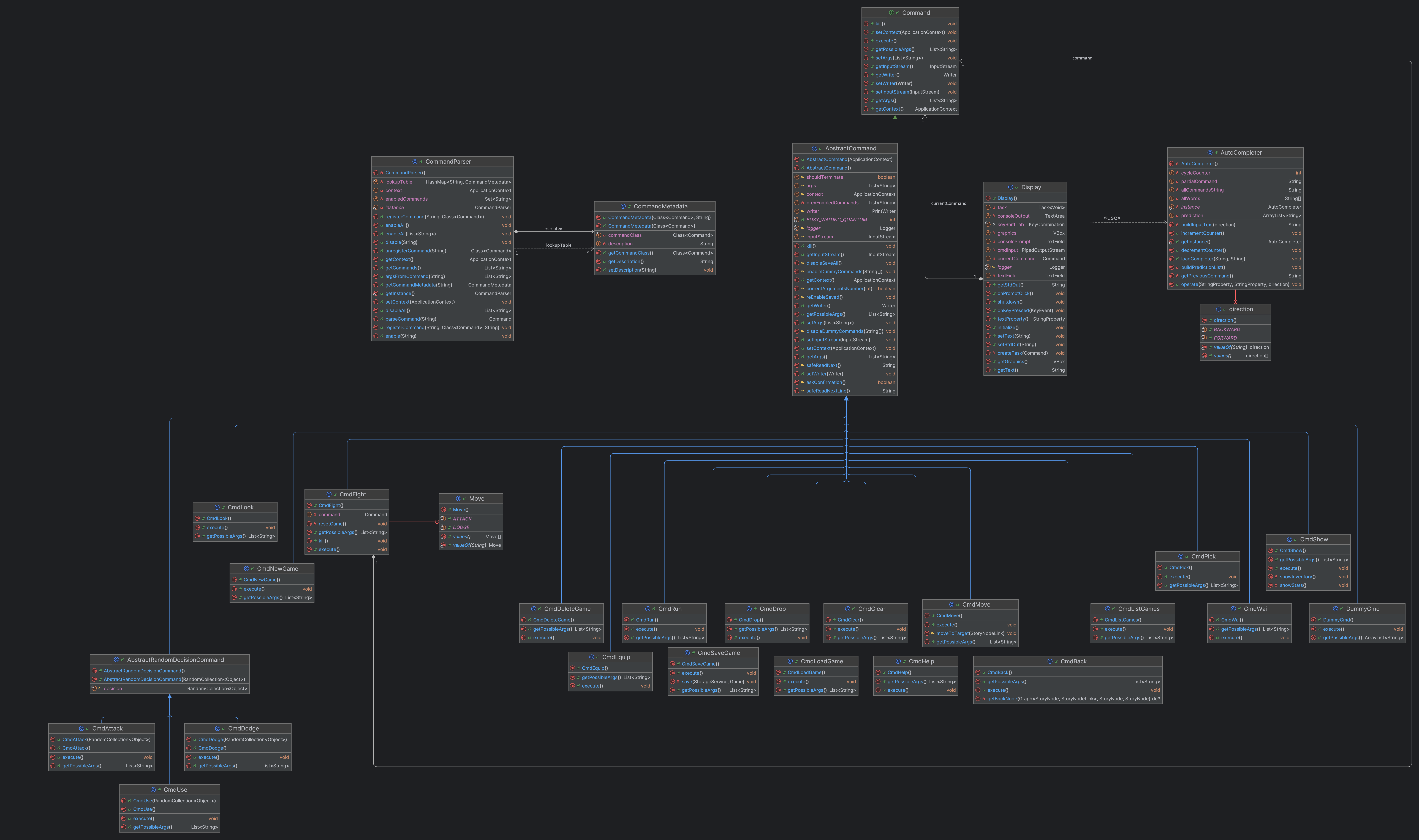

Commands

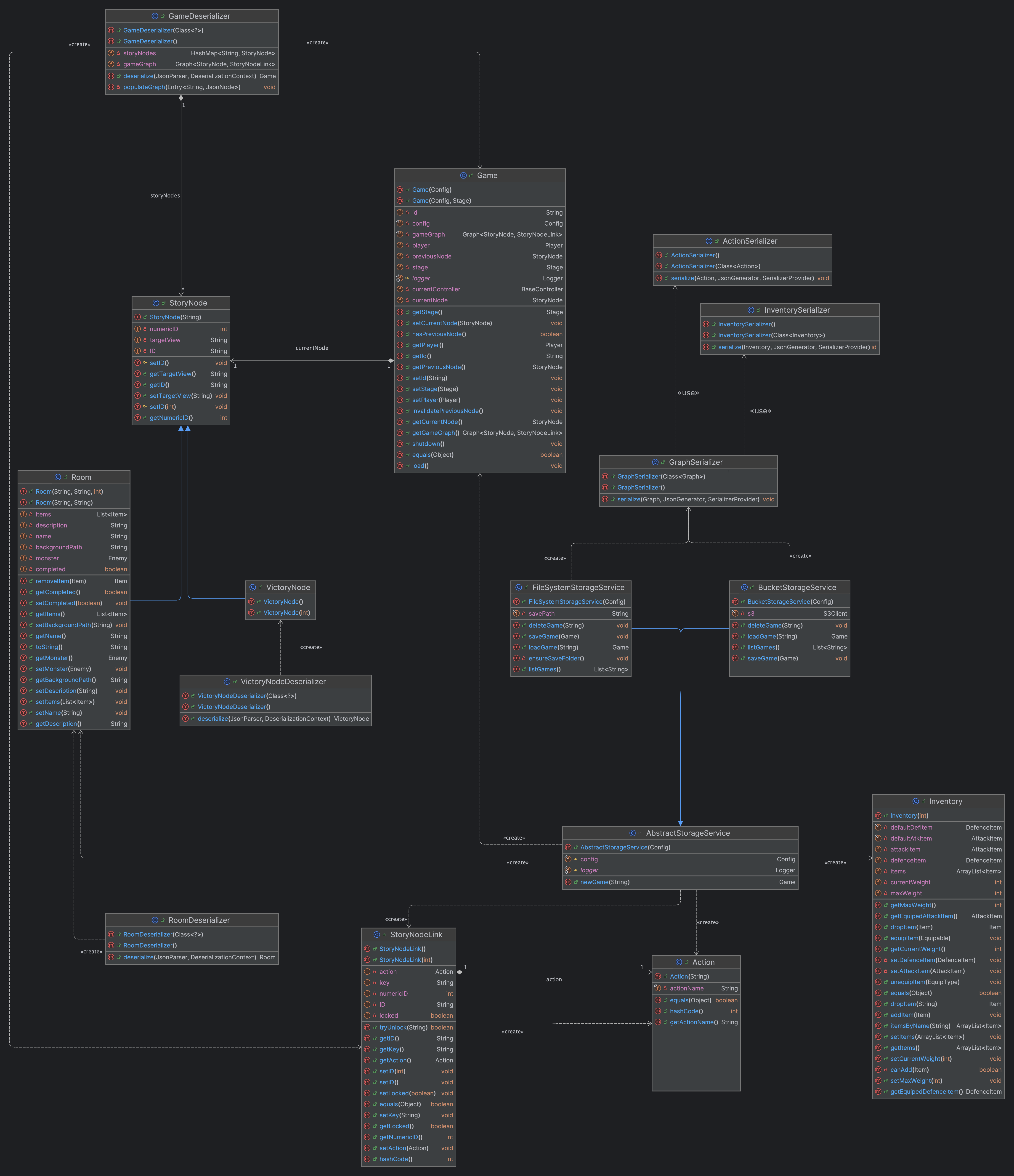

Serializers/Deserializers

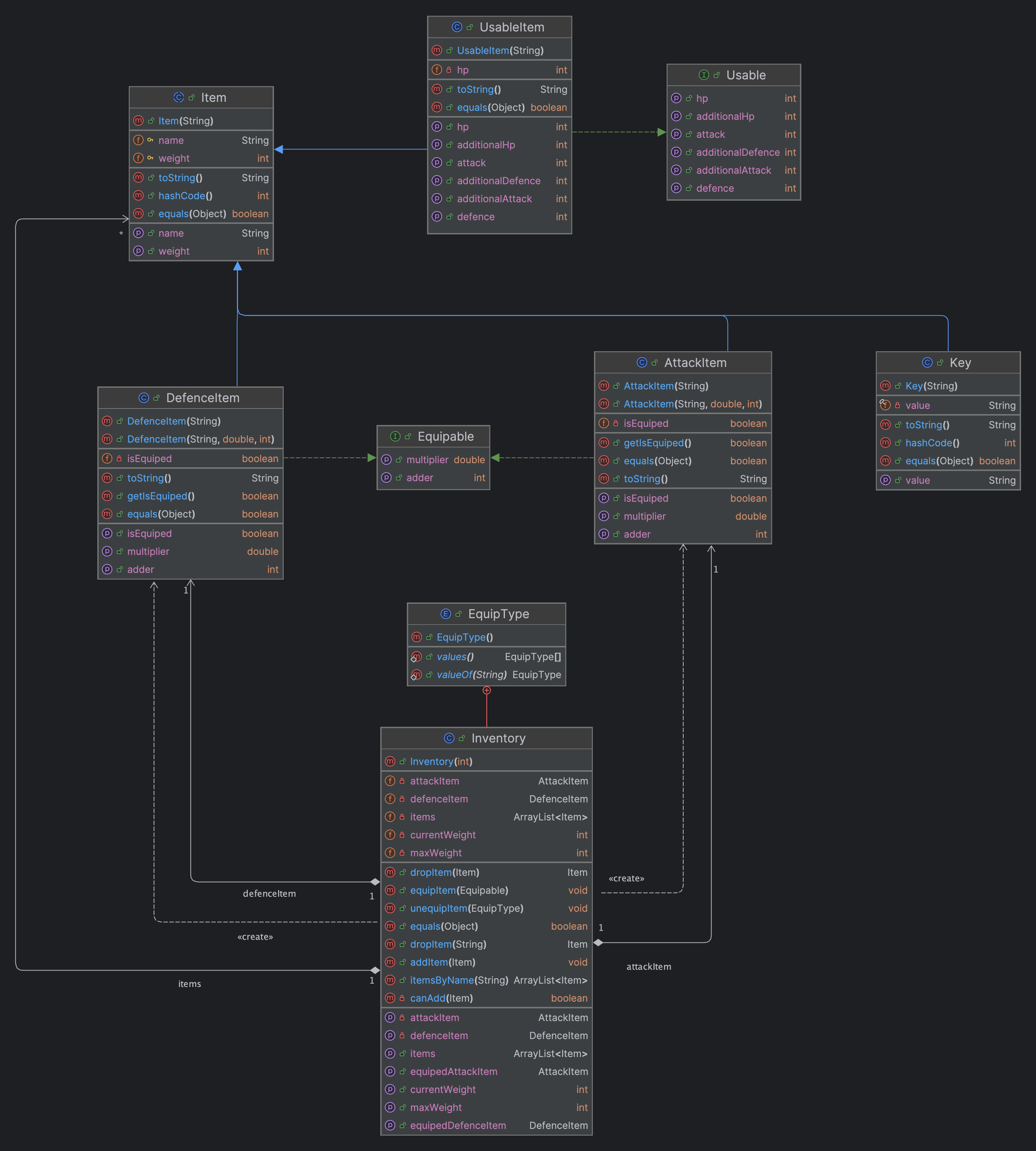

Inventory

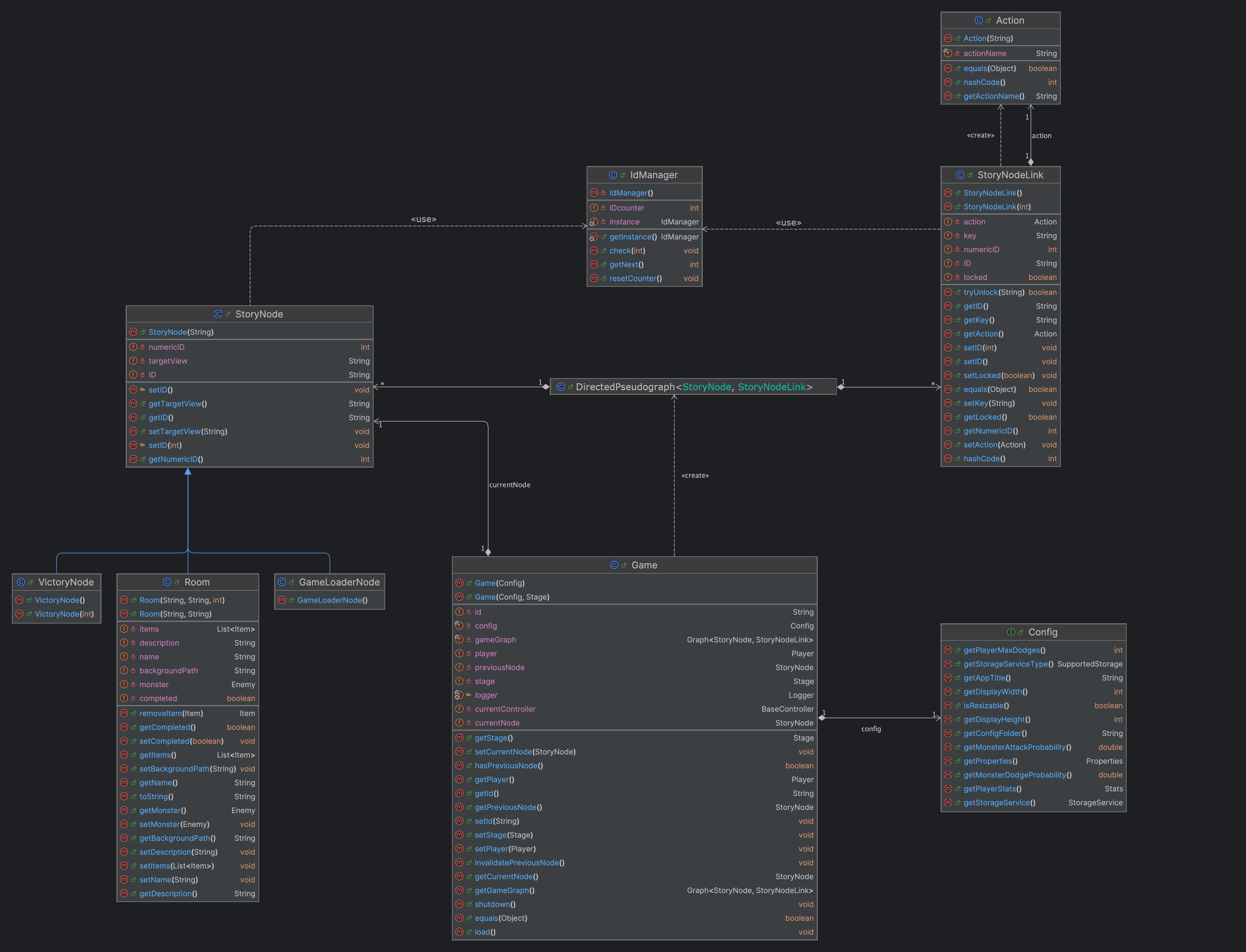

Nodes

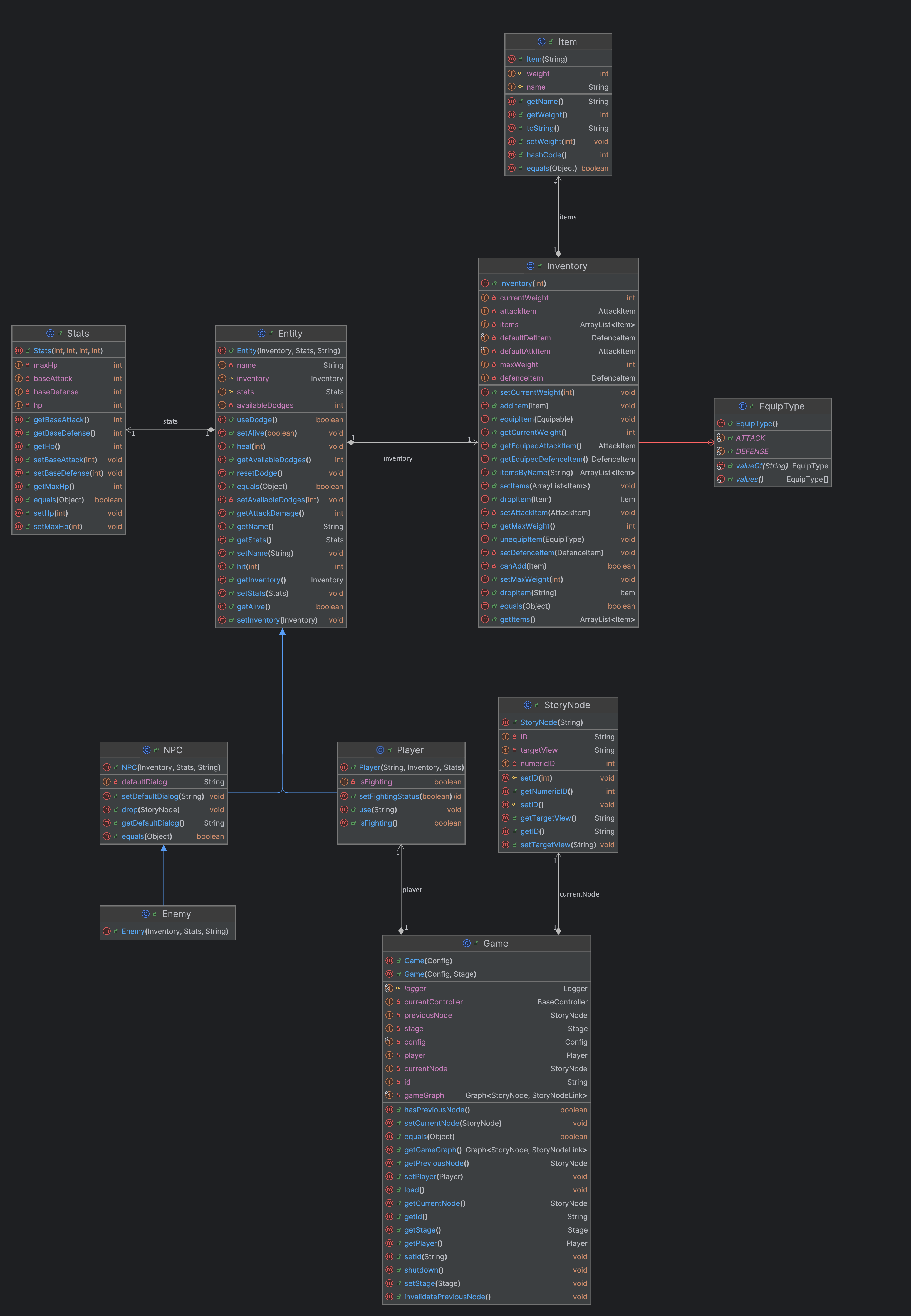

Player

Services
